Cranes for Hire in Wide Bay

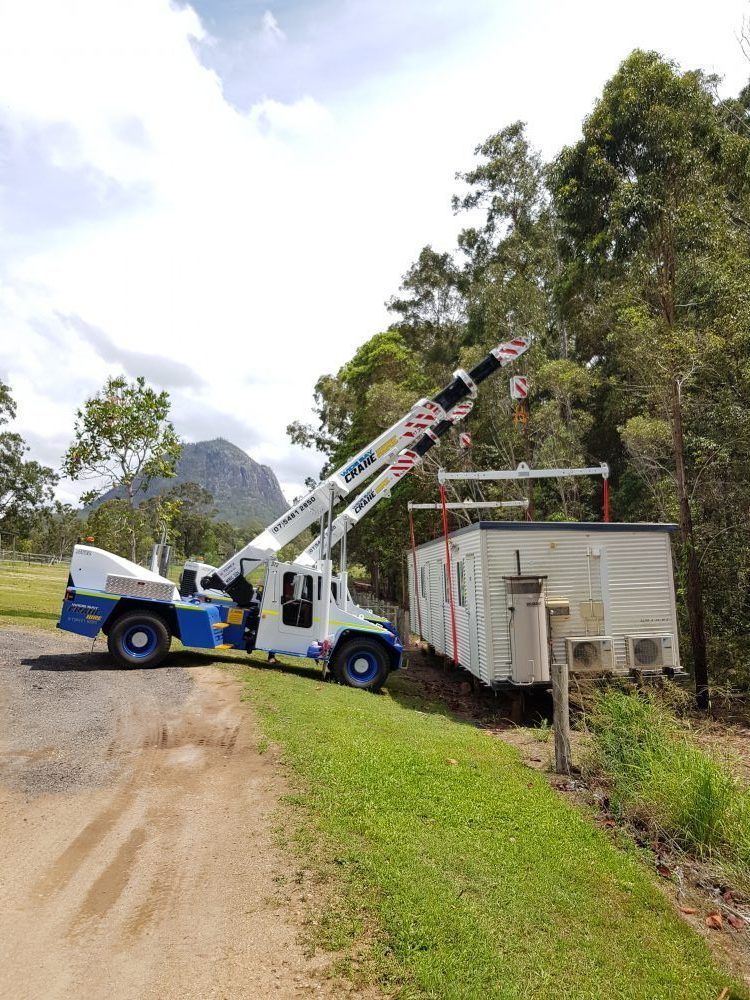

15 Tonne Franna Mobile Cranes
Maximum Lifting Capacity: 15 tonne at 1.4m radius
Main Boom Length: 17.5m
Crane Length: 9m
Crane Width: 2.5m
Crane Height: 2.8m
Front Axle Weight: 6,000kg
Rear Axle Weight: 10,400kg
Total Weight: 16,400kg
Travel Speed: 80kph
The 15 tonne Franna is versatile crane that can be used on many types of unprepared surfaces where no roads have been constructed. For use on housing sites, they can be used to lift flooring, frames, trusses, roofing iron and air conditioners. The 15 tonne Franna crane is a cost-effective crane due to its quick travel time to and from sites.

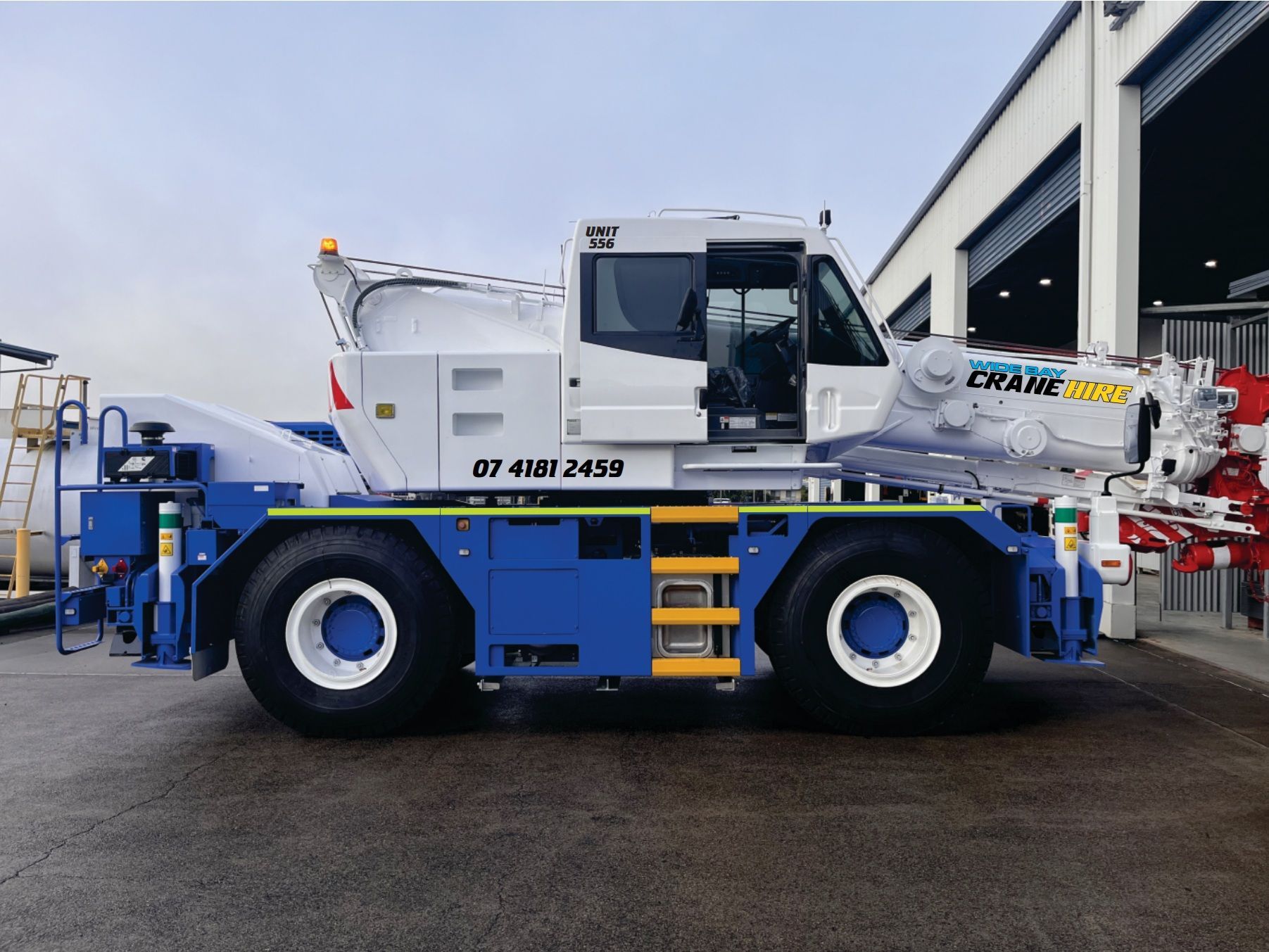

13 Tonne City Crane
The telescopic boom consists of the main boom, five powered sections.
- 24m long telescopic boom
- 3.6 – 5.5m hydraulic luffing fly and needle
- 25m maximum hook height, 30m with jib
- 10t at 2.5m radius main boom
- 320kg at 22.5m radius main boom
Suitable For:
- Difficult access and operating areas eg. driveways, laneways, switchyards, building sites
- Roof trusses and roof sheets
- Steel erection
- General construction and maintenance works
- House extensions and renovations
Franna Mac 25-L
- Name: Terex
- Model: MAC 25/SL
- Capacity: 28t
- Boom: 18.4m
- Fly: 3m
- Length: 3m
- Height: 3m
- Foot print: N/A
- Counter Weights: N/A
- Max Tip Height: 22m

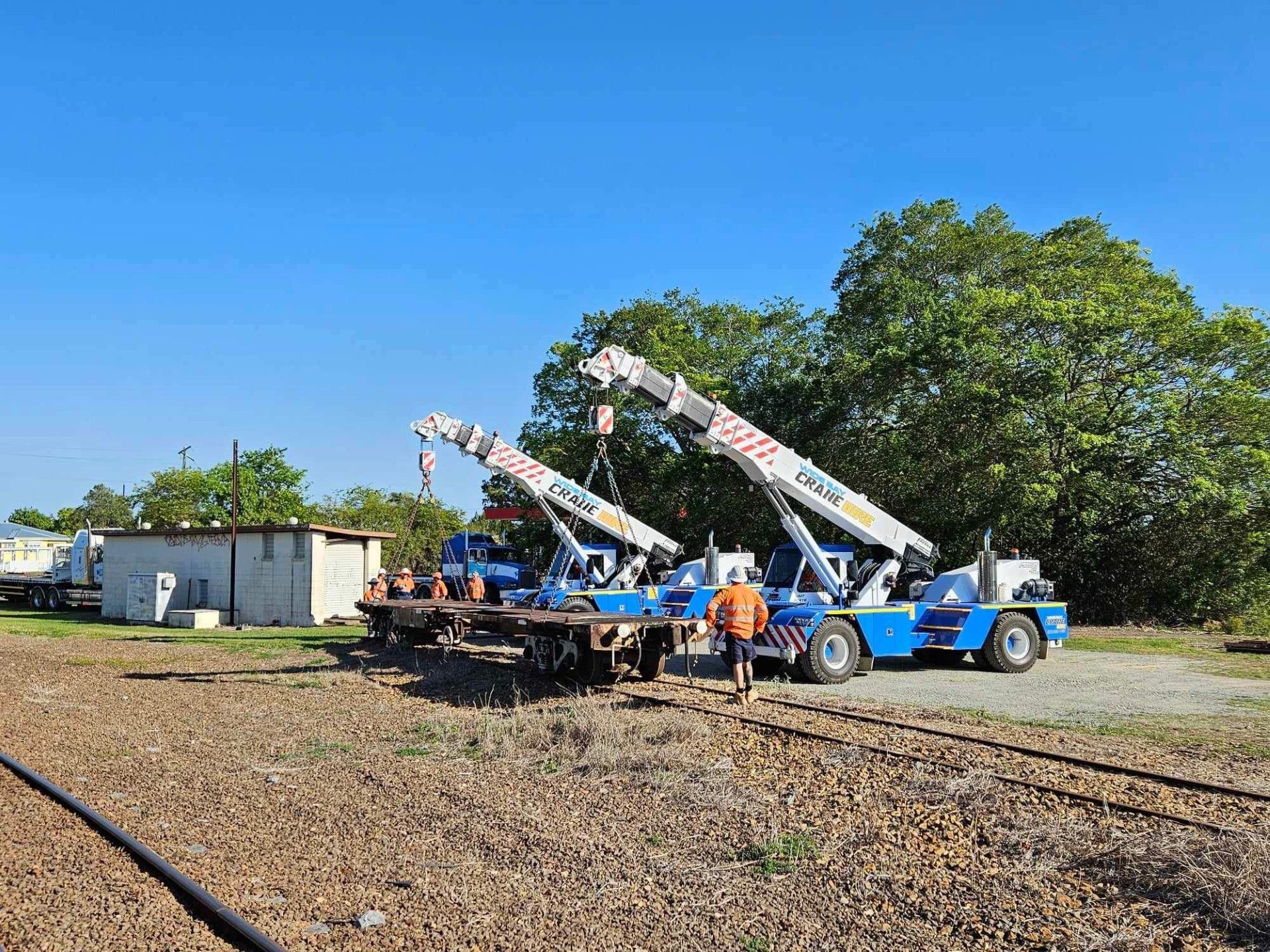

20 Tonne Franna Mobile Cranes
Franna’s are versatile and multipurpose allowing use in workshops, production plants and building sites alike. This pick and carry crane provides the power and versatility for your construction and maintenance lifts.
- Overall length incl. boom 9.67 metres
- Overall width 2.50 metres
- Overall height 3.07 metres
- 17m maximum hook height, 20m with jib
The telescopic boom consists of the main boom, two powered sections and a manual section.
- 9m long telescopic boom & 2.9m fly jib
- 8t at 1.6m radius
- 60t at 15.8m radius
30t Kato Slew Crane

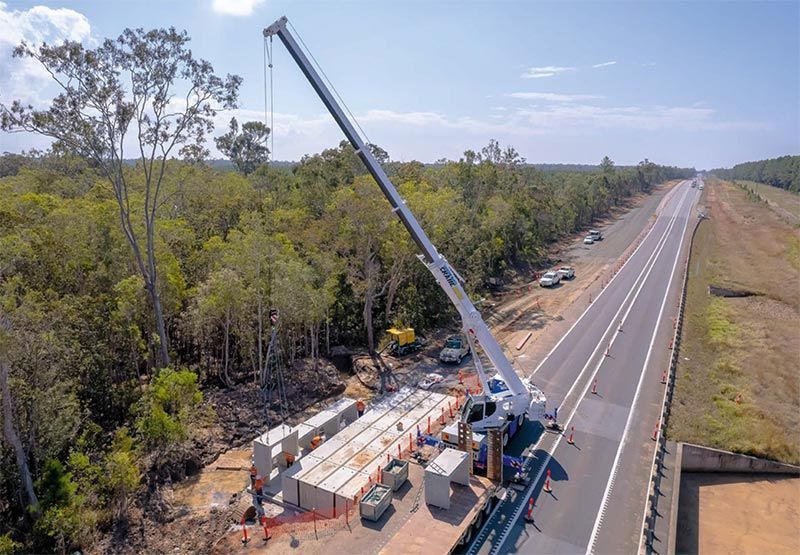

60 Tonne Tadano Crane
The GT-600EX has a newly developed rounded solid boom of 43.0 m — One of the longest boom in its class. In addition, with the introduction of a new Automatic Moment Limiter model, the AML-C offers customers a safer operating environment. Further, improved travelling performance ensures a comfortable drive to work sites.

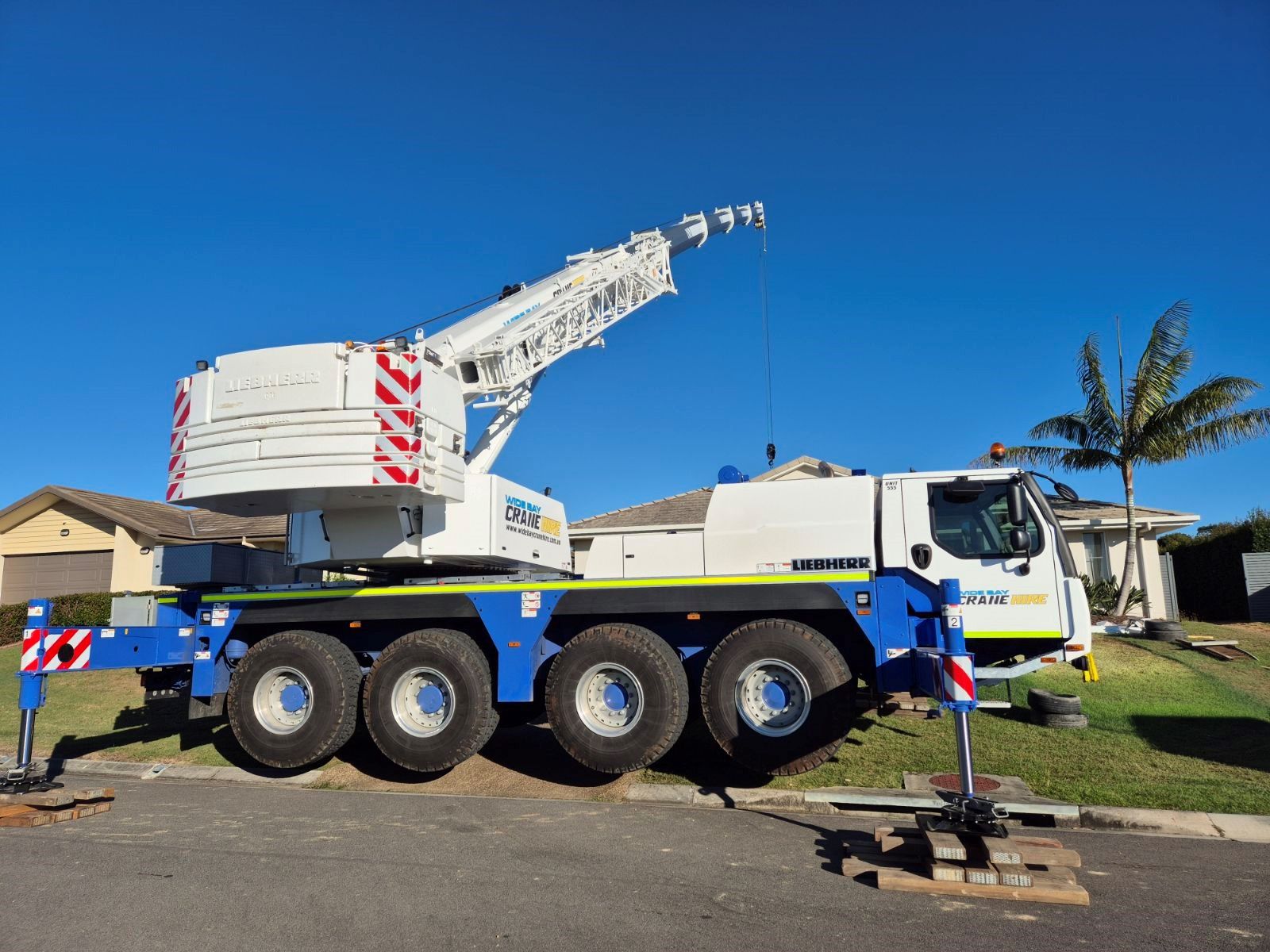

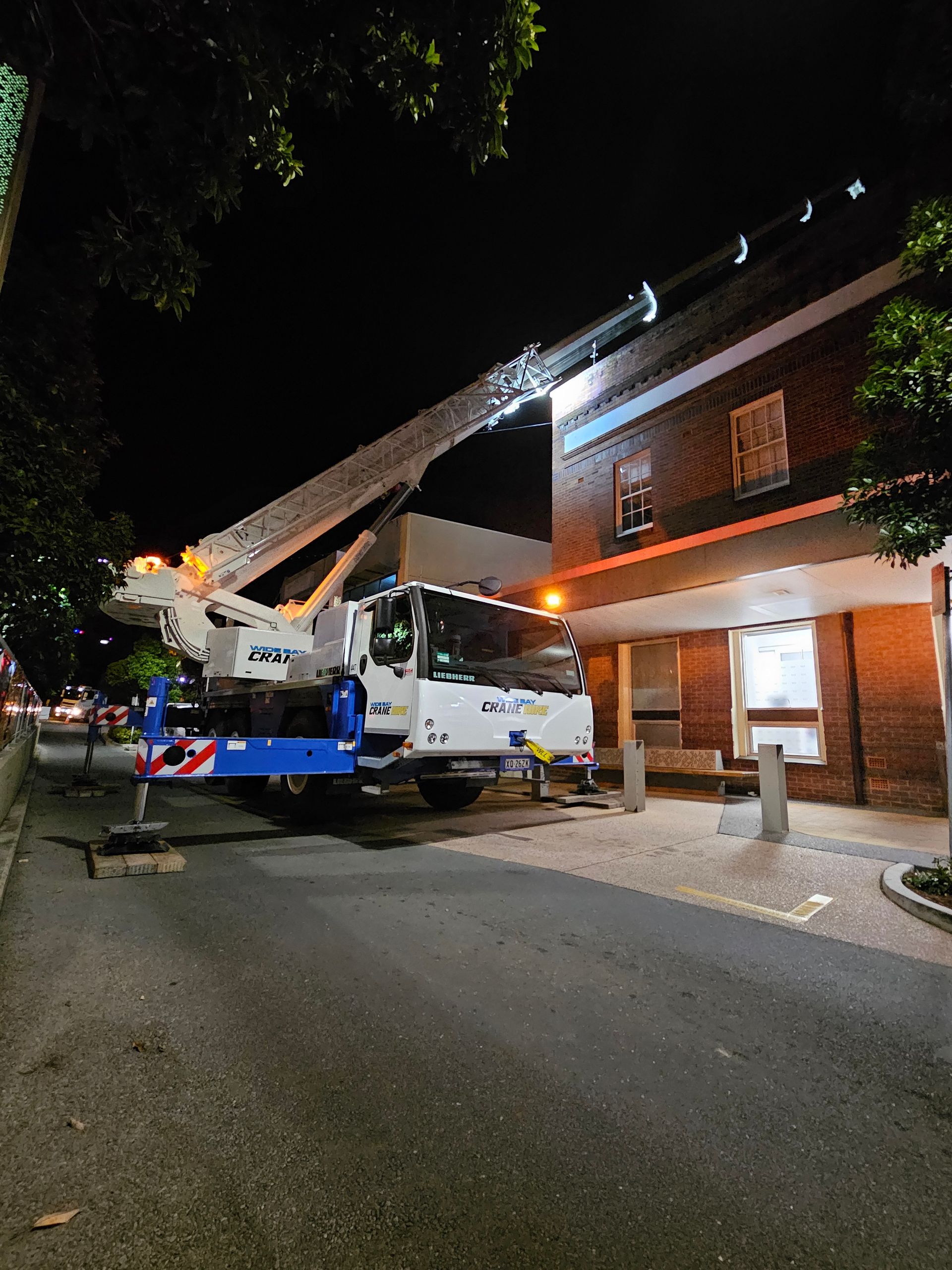

60 Tonne Liebherr Crane

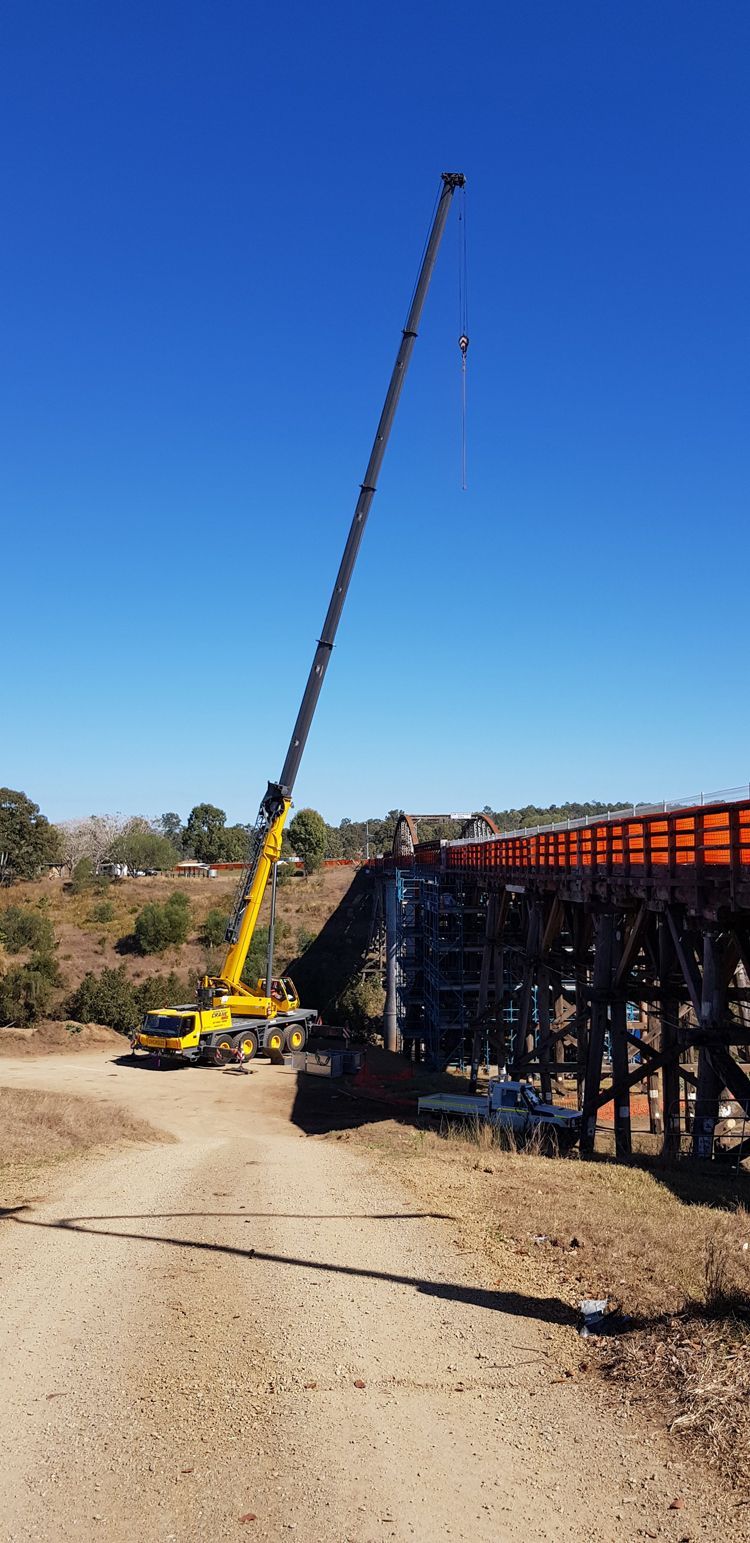

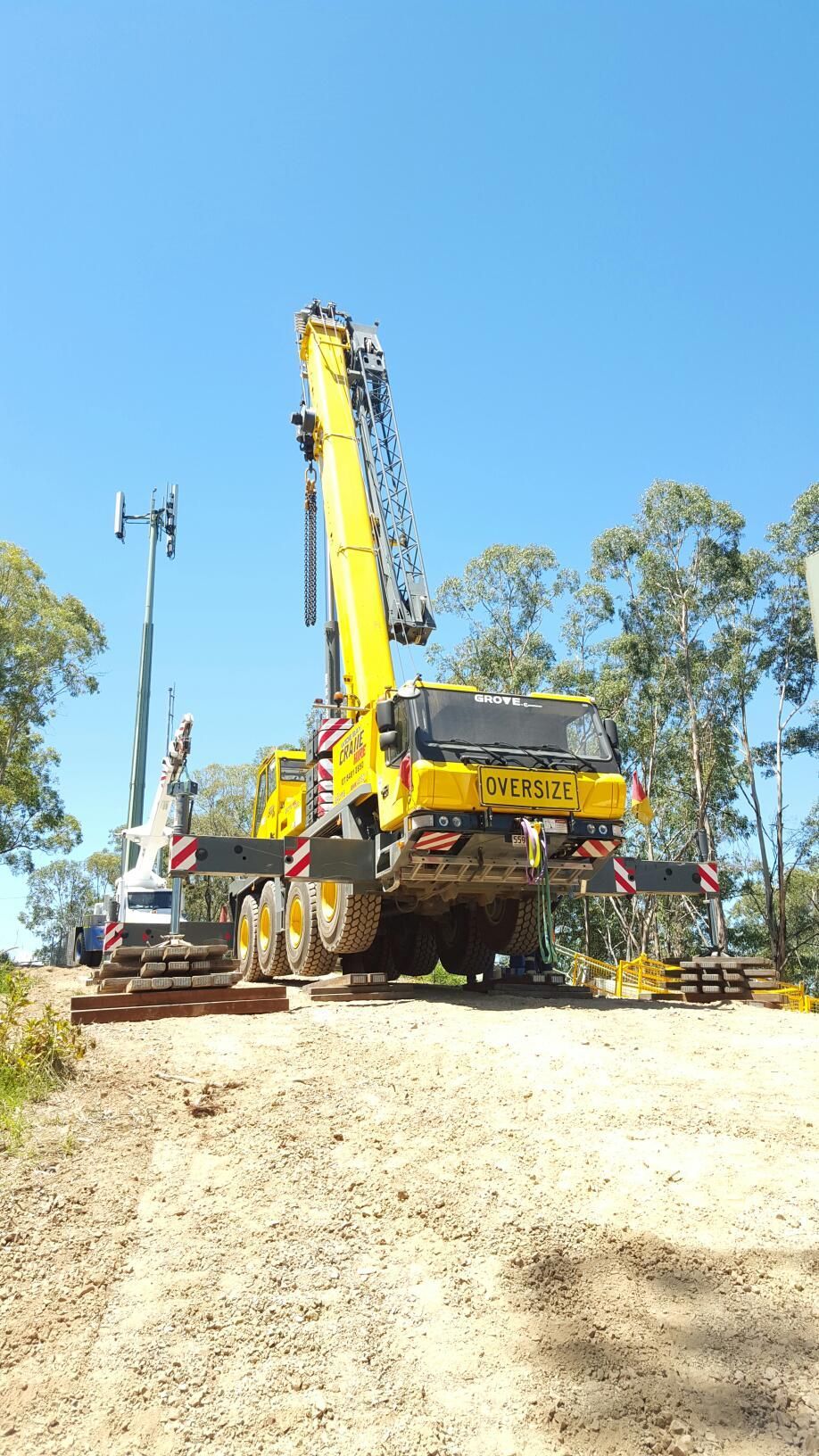

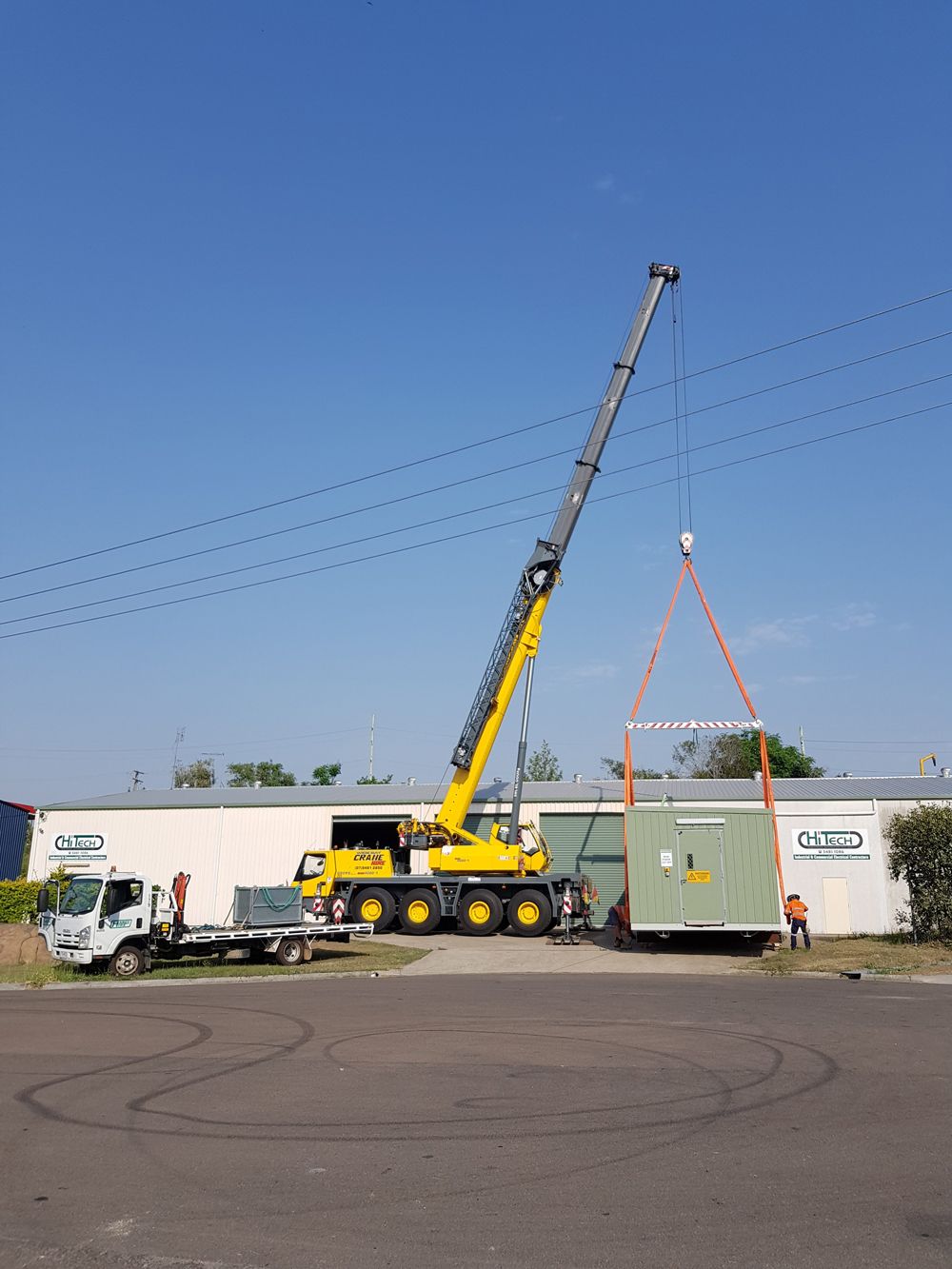

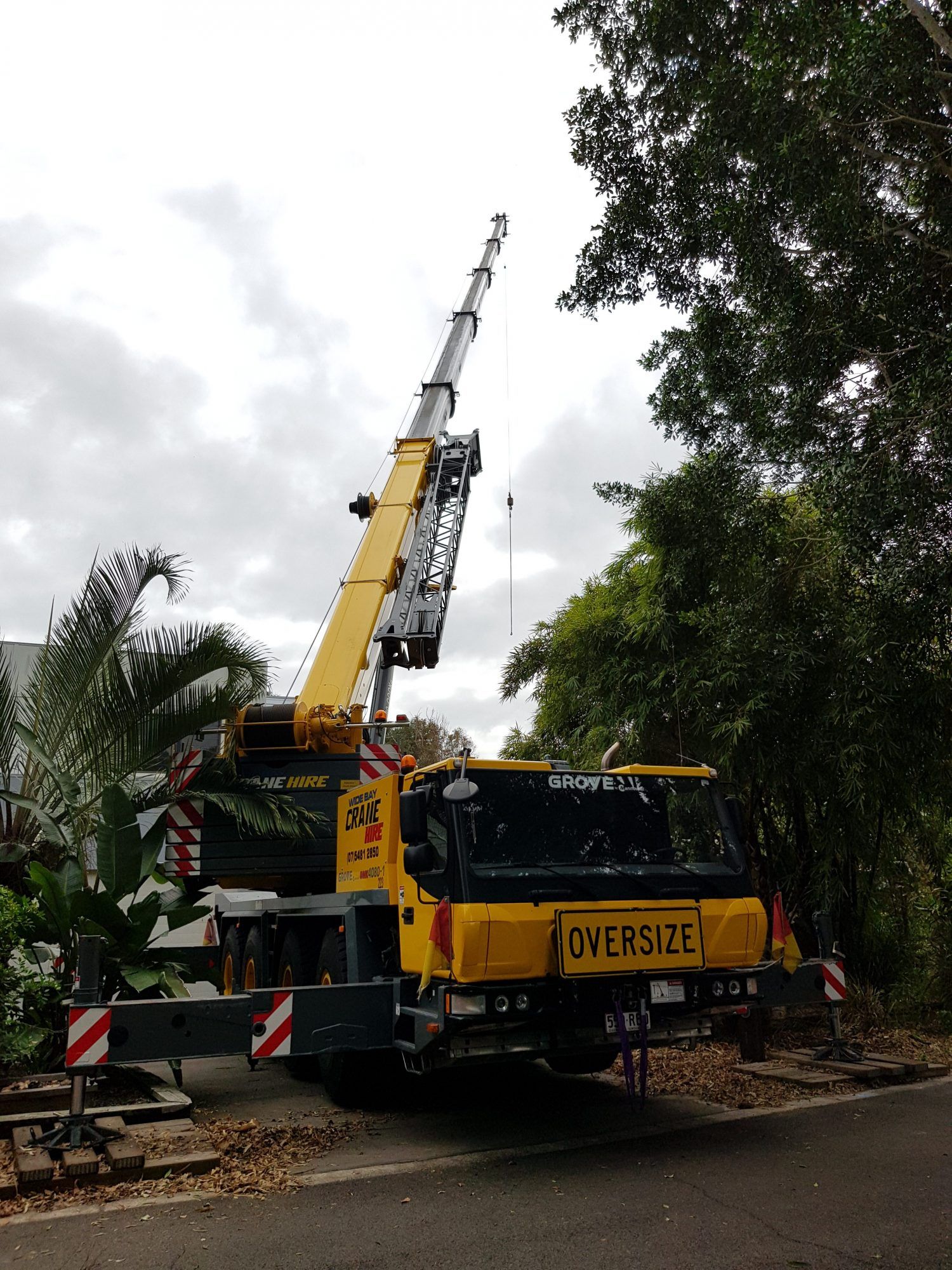

80t Grove All Terrain Cranes
Boom: 11m to 51m
Wrap around fly: 8.7m to 21m
Length: 12.530m
Width: 2.540m
Height: 3.845m
Outrigger footprint: 8.1m x 7m
Counterweight: 0t to 19.3t
Max tip height: 73m
A highly effective crane, that is able to work above its weight in many areas, with a highly flexible working range.
This crane only requires 1x twin steer truck to establish itself on site.

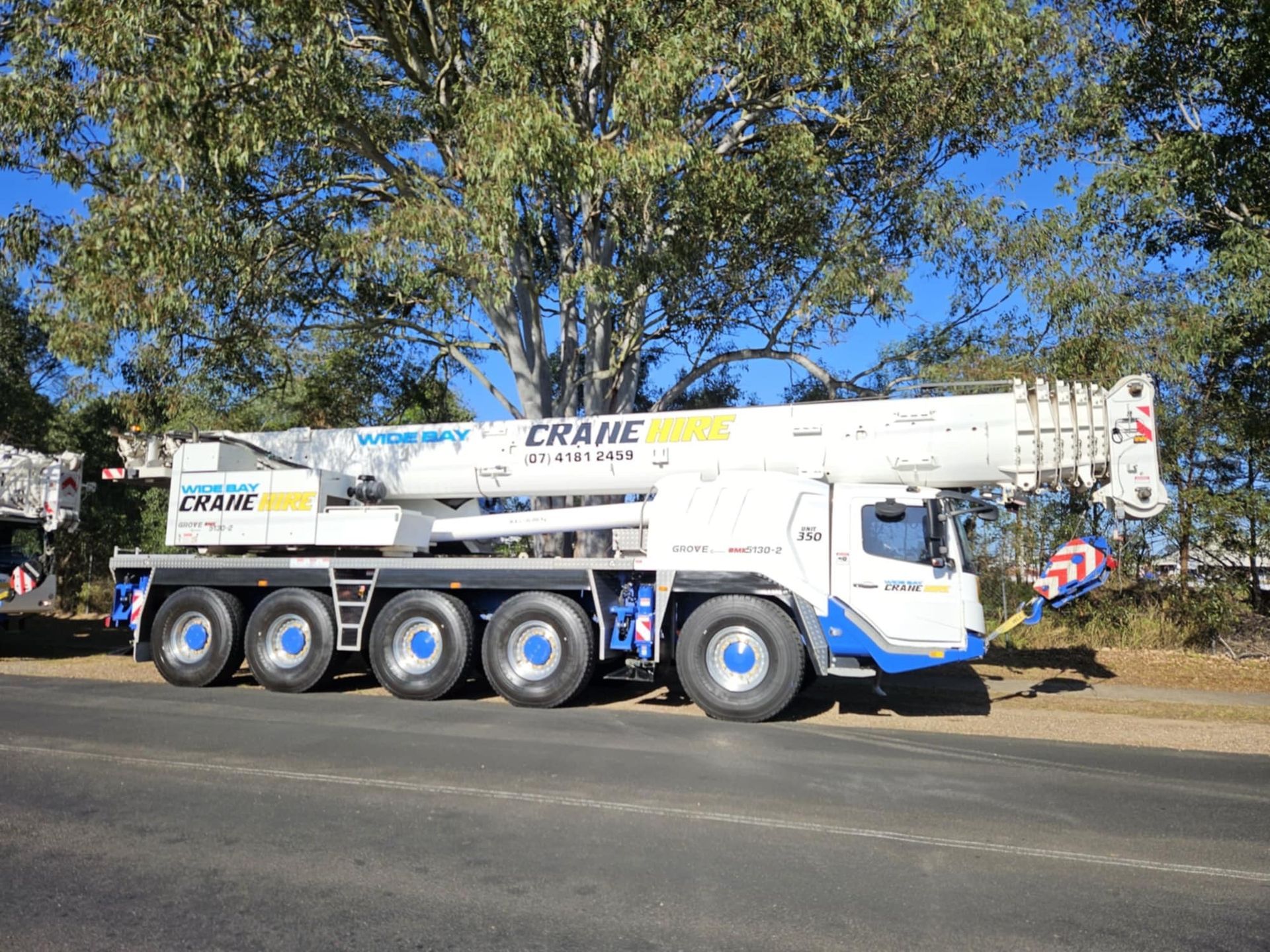

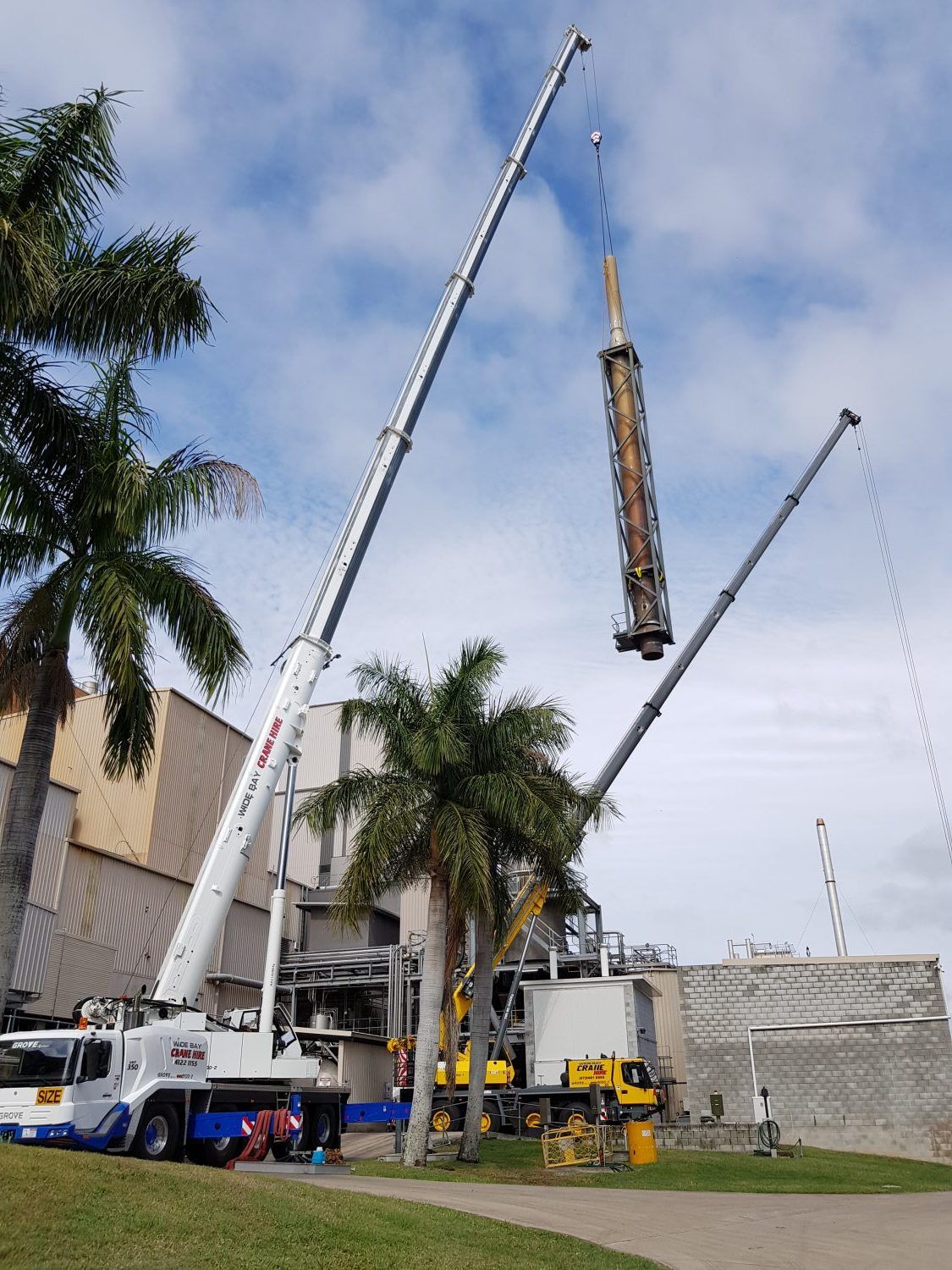

130t Grove All Terrain
This crane has 60m of main boom and an 18m fly and needle as standard, with an additional 14m insert available. Giving the GMK 5130 a dominant lifting range on any site / project.
Boom Size 12.9m - 60m
With fly and needle 11m to 32m available
Max tip height: 95m
Running Gear 5 Steerable Axles
Length 14.090m
Width 2.75m
Height 3.91m
Outrigger Footprint: 8m x 7.5m - 4 point support
Counterweight: up to 40.1 tons

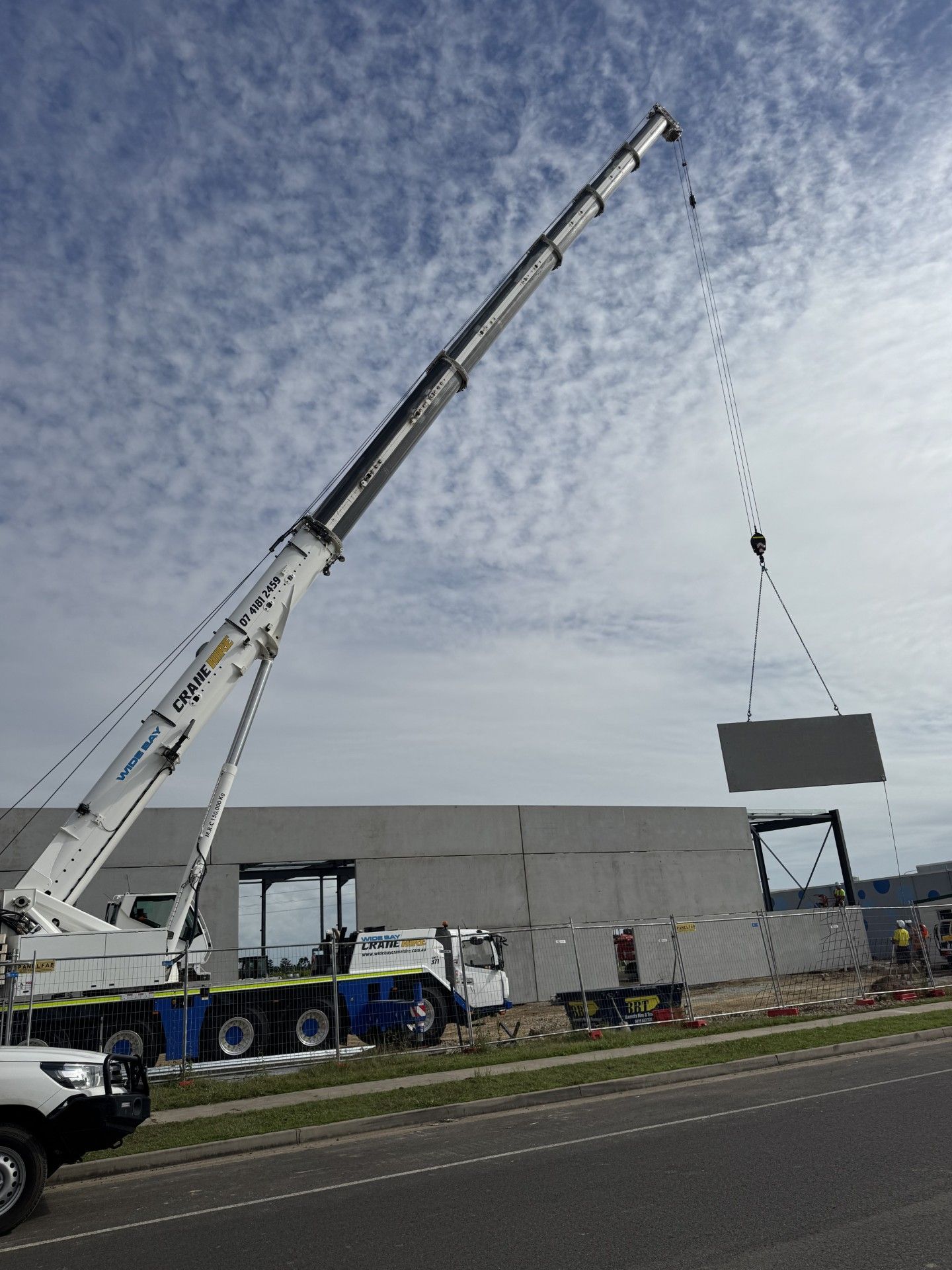

150 Tonne Grove All Terrain Crane
Main Boom 12.8m – 60m,
Wrap around fixed fly jib 11.2m – 25.8m,
Hydraulically adjustable 0 – 50 degrees offset.
5 axle crab steer all terrain mobile crane with 1 tonne capacity 68m radius.
Maximum lift of 150 tonne @ 3m radius, with variable outrigger settings of 2.5m – 7.6m.

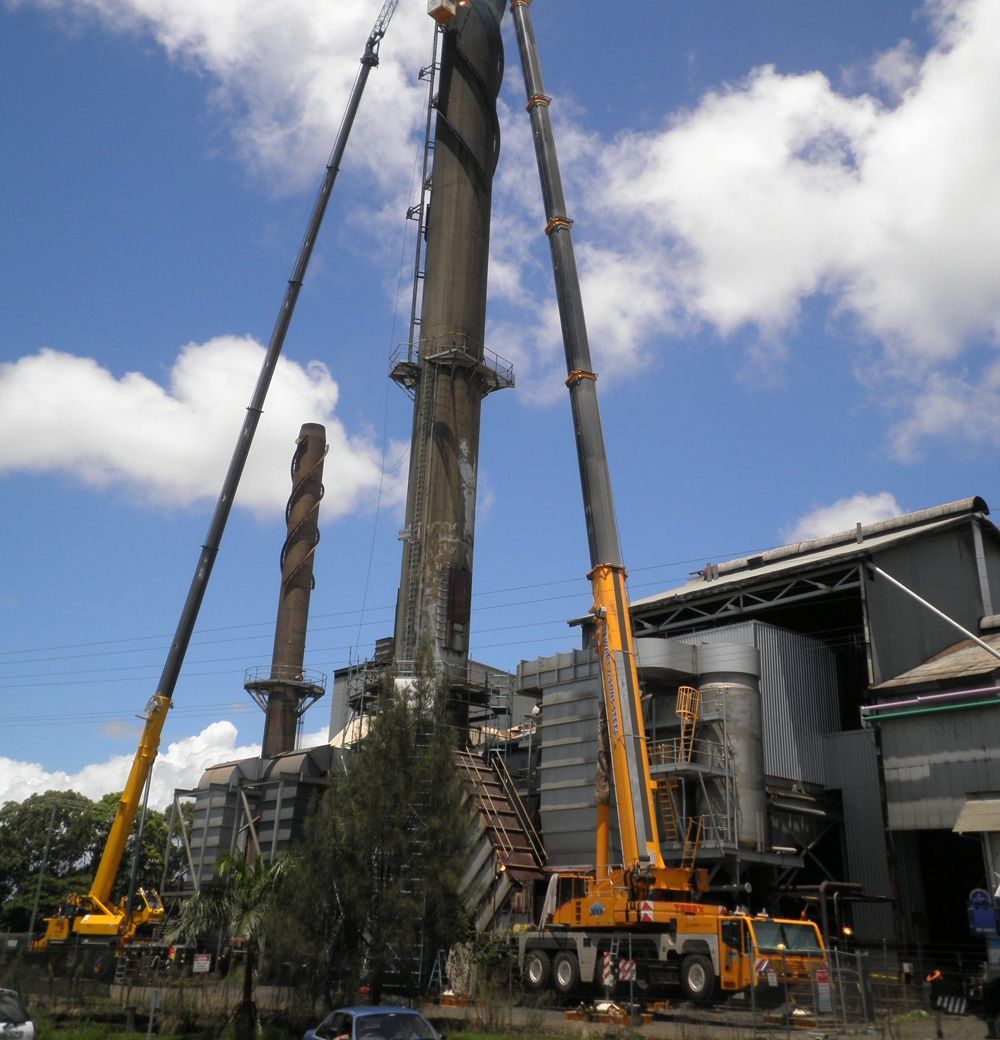

200t Demag All Terrain Crane
Capacity: 200 Tonnes
Boom length: 67.8 Metres
Max lift: 147t @ 3m/2.9 @62m Tonnes

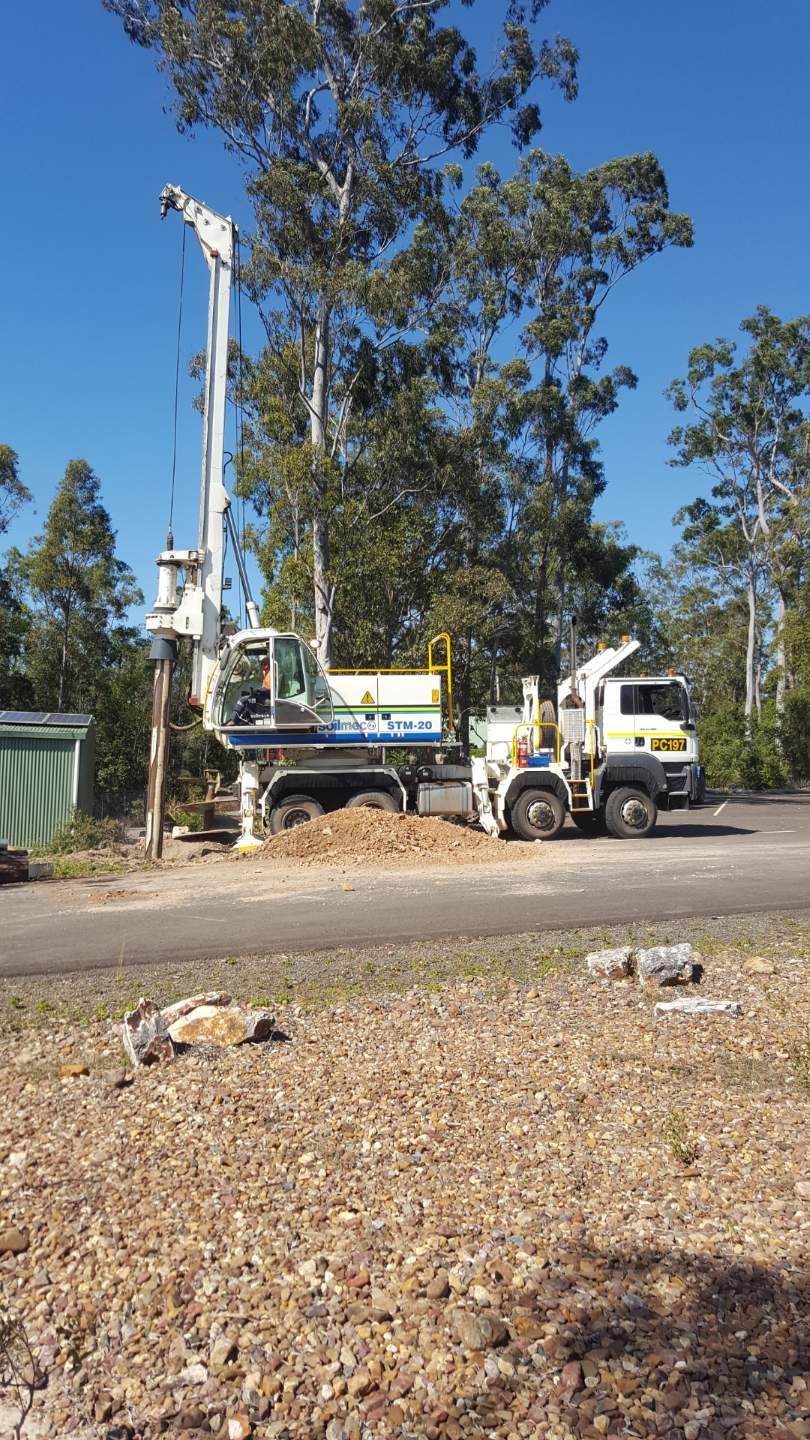

STM Soilmec Foundation Boiler
TECHNICAL DATA
| Diesel engine | 119 kW |
|---|---|
| Weight | 20 t |
| Max. diameter | 1100/1800 mm |
| Max. depth | 30 m |
| Max. torque | 85 kNm |
LDP – LARGE DIAMETER PILE
| Weight | 20 t |
|---|---|
| Max. diameter | 1100/1800 mm |
| Max. depth | 30 m |

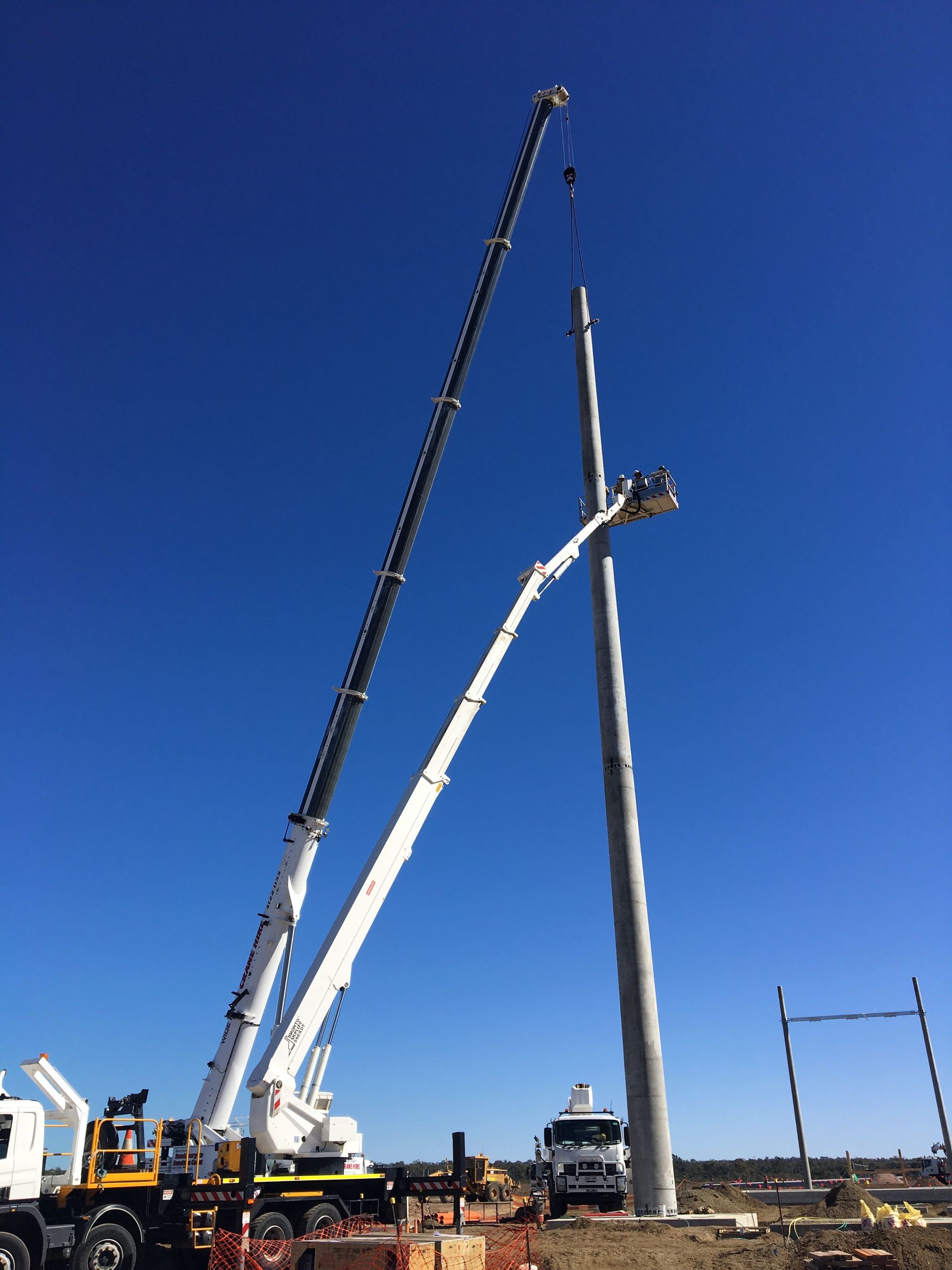

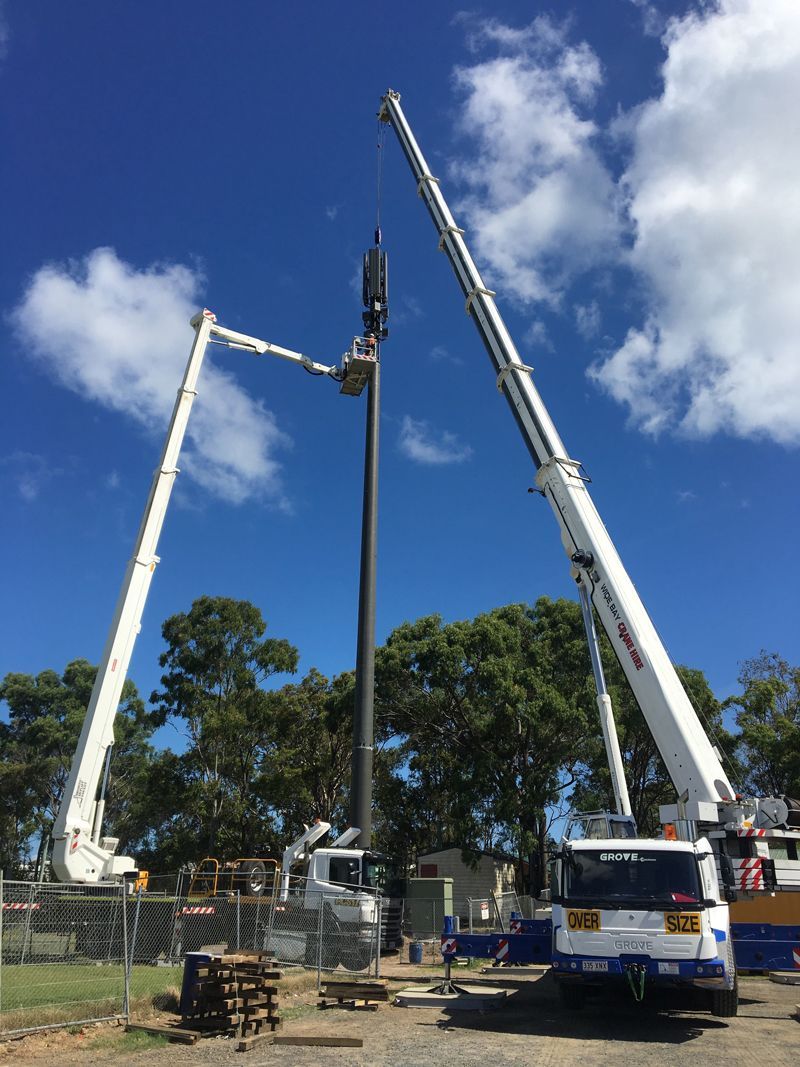

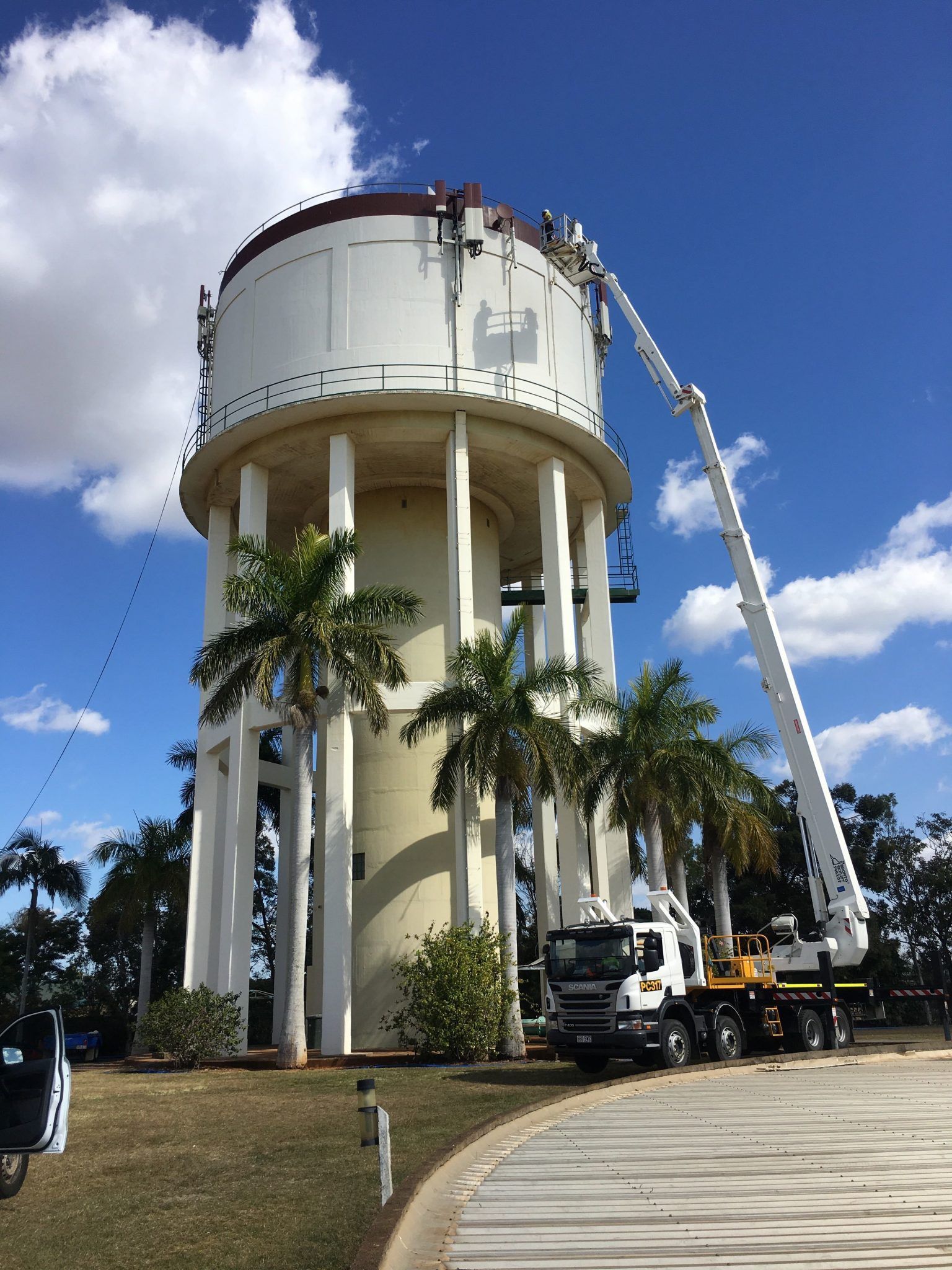

EWP's To 46 Metres
- 46m Bronto Skylift S46 XDT
- 600kg extendable cage
- Telescopic flyboom
- Hydraulic 6.5kva generator with power to cage
- Working hydraulics to cage
- Full basket rotation
- Continuous slew
- Mounted on Man 6×6
High capacity basket rotator, capable of 180 degrees rotation with extendable basket

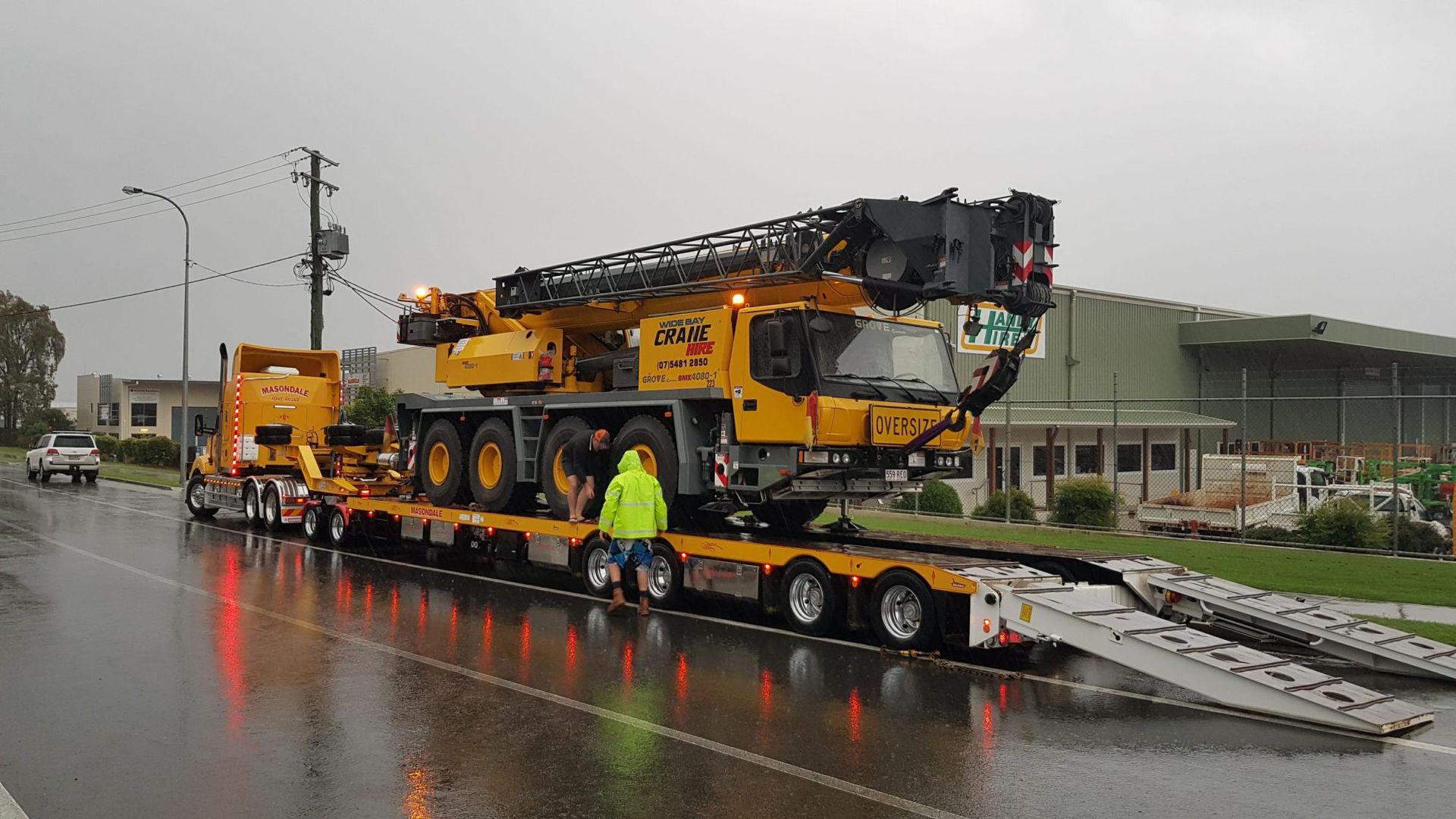

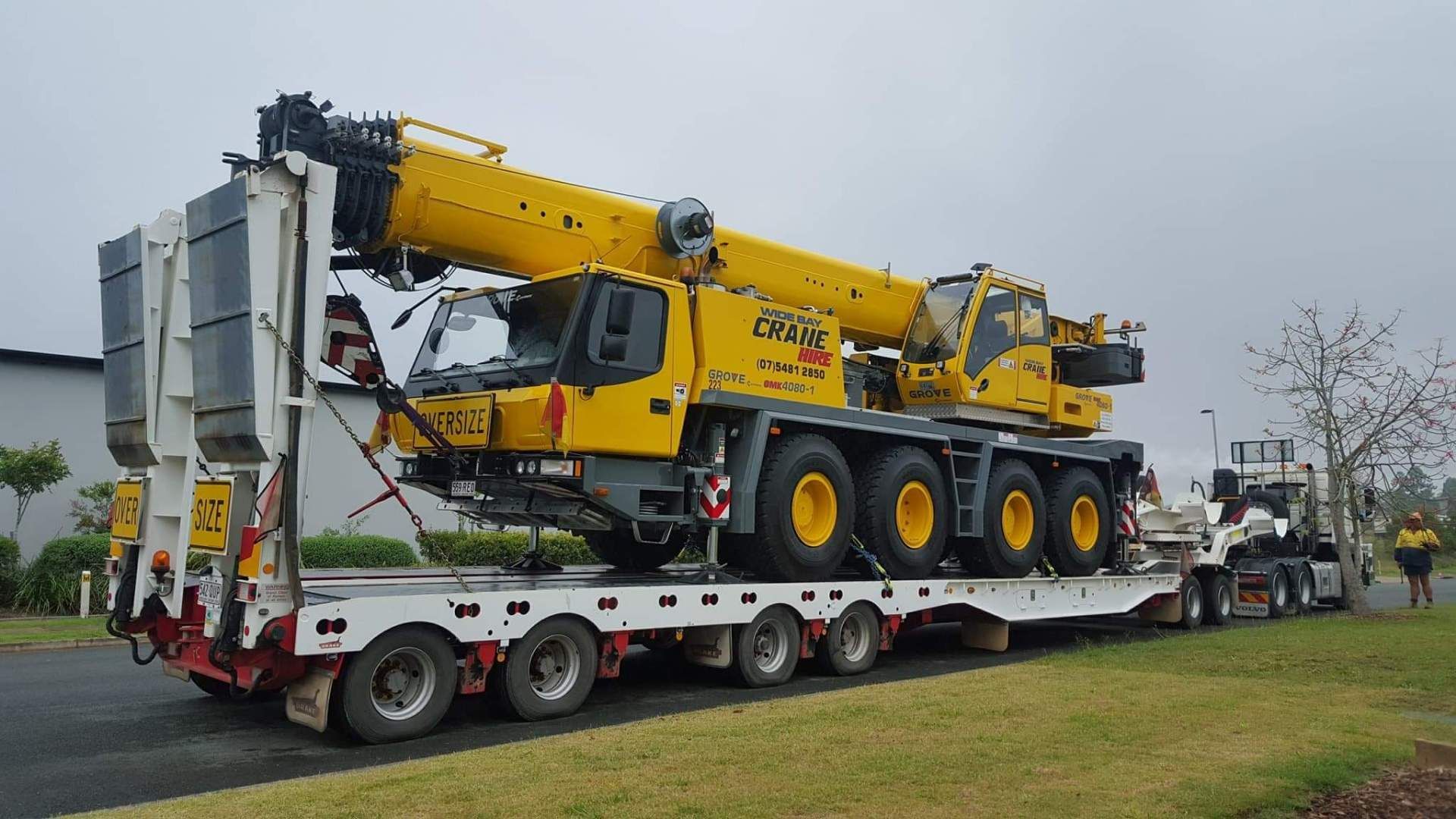

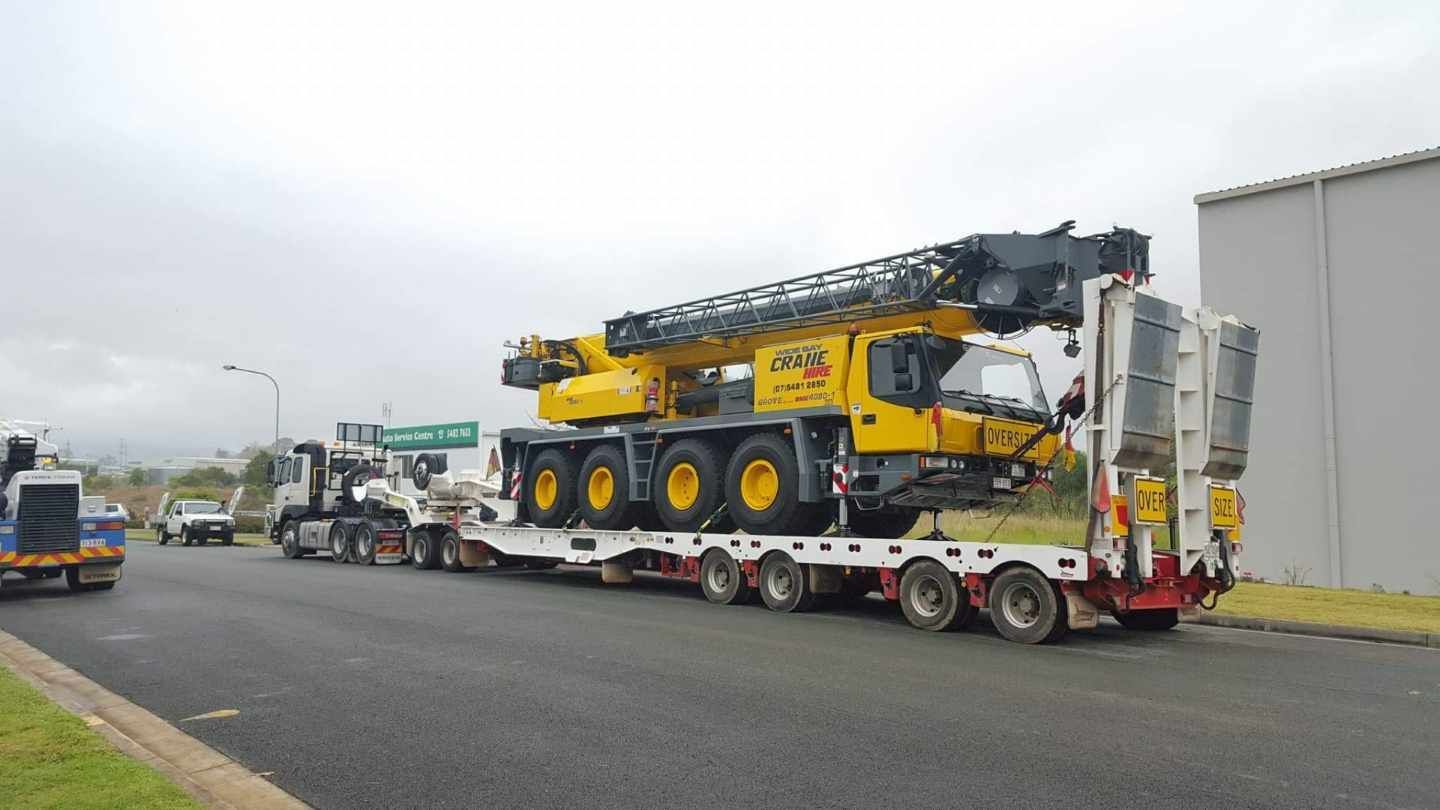

Quad Floats
At Wide Bay Crane Hire we have quad floats available to transport equipment to your project.

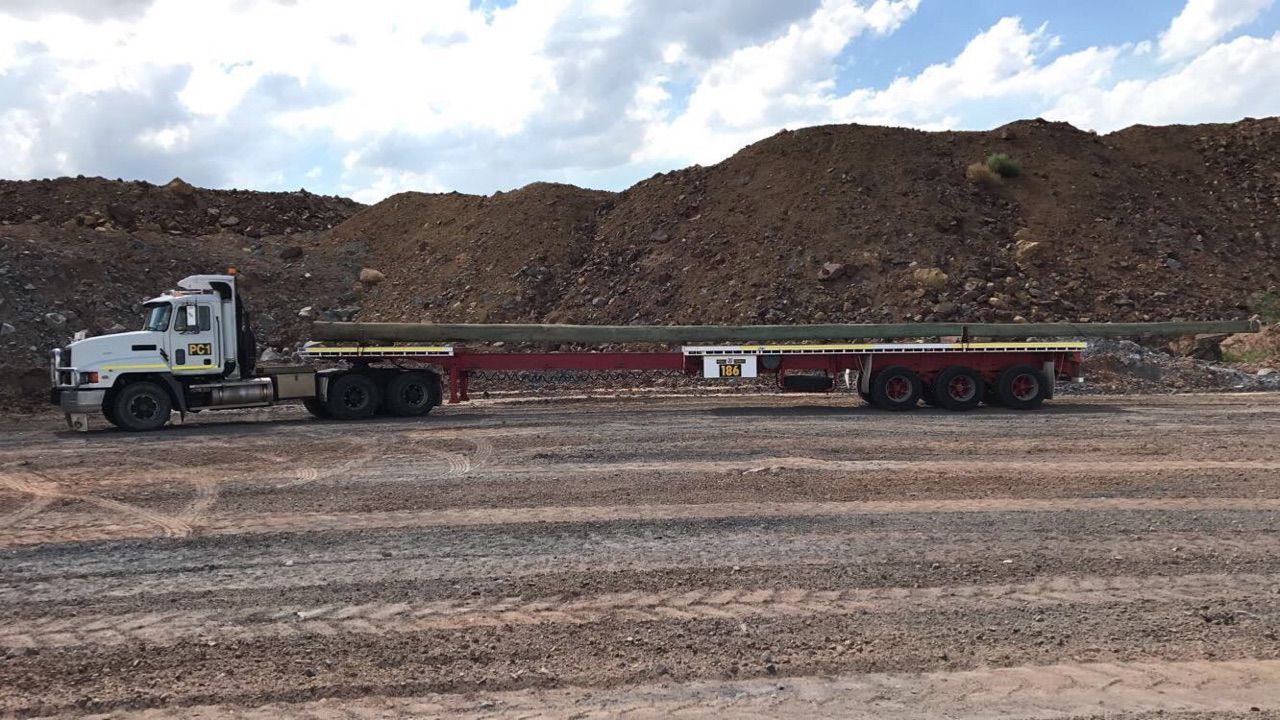

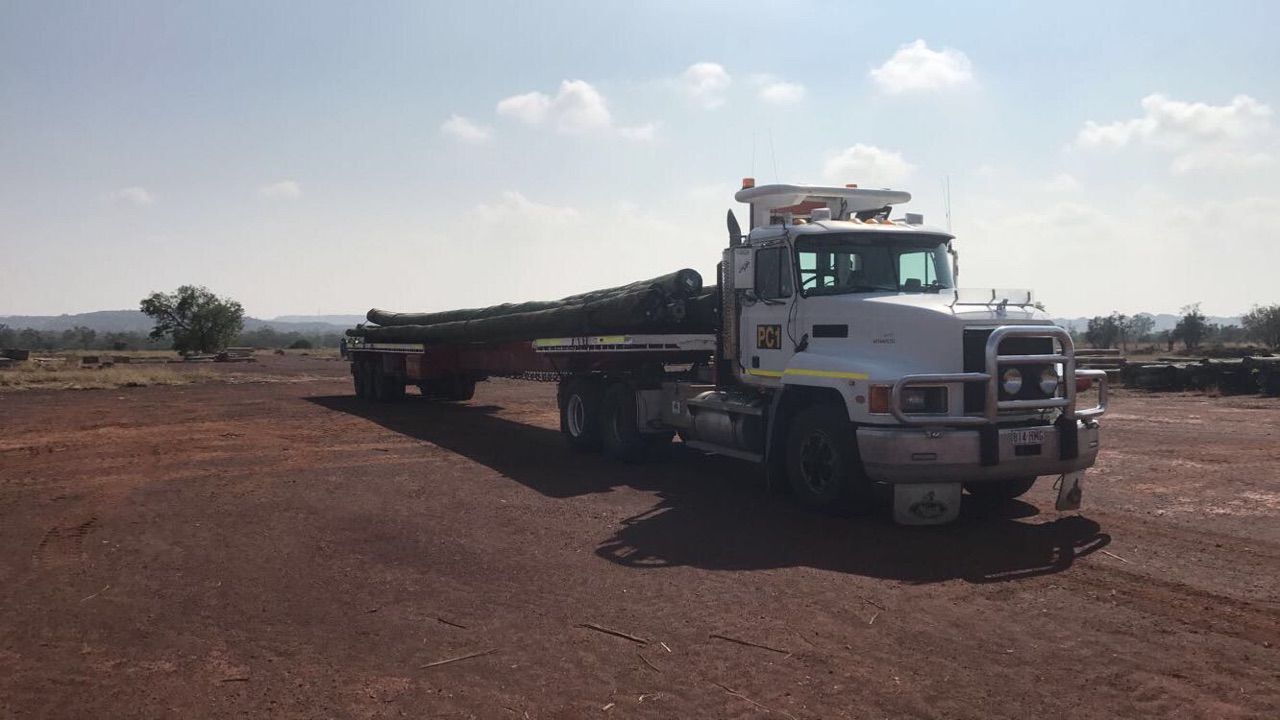

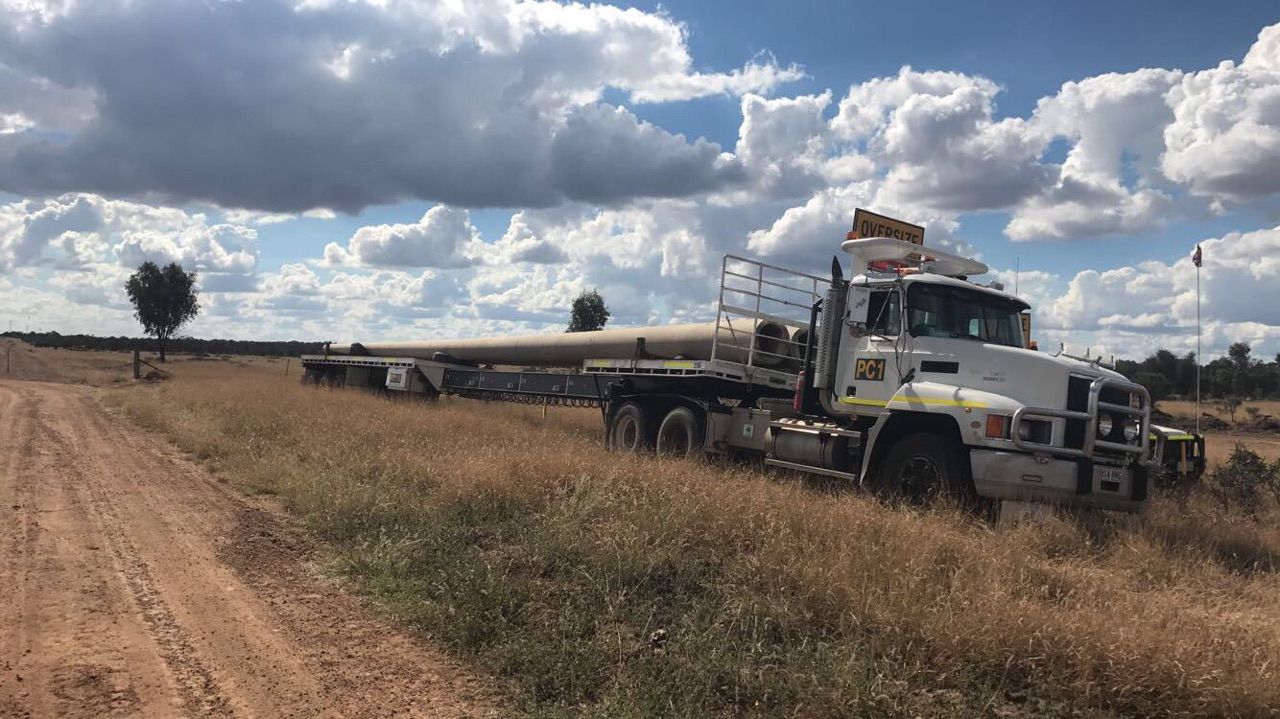

Extendable Trailers
At Wide Bay Cranes we have extendable trailers available to transport equipment and cranes to your project.

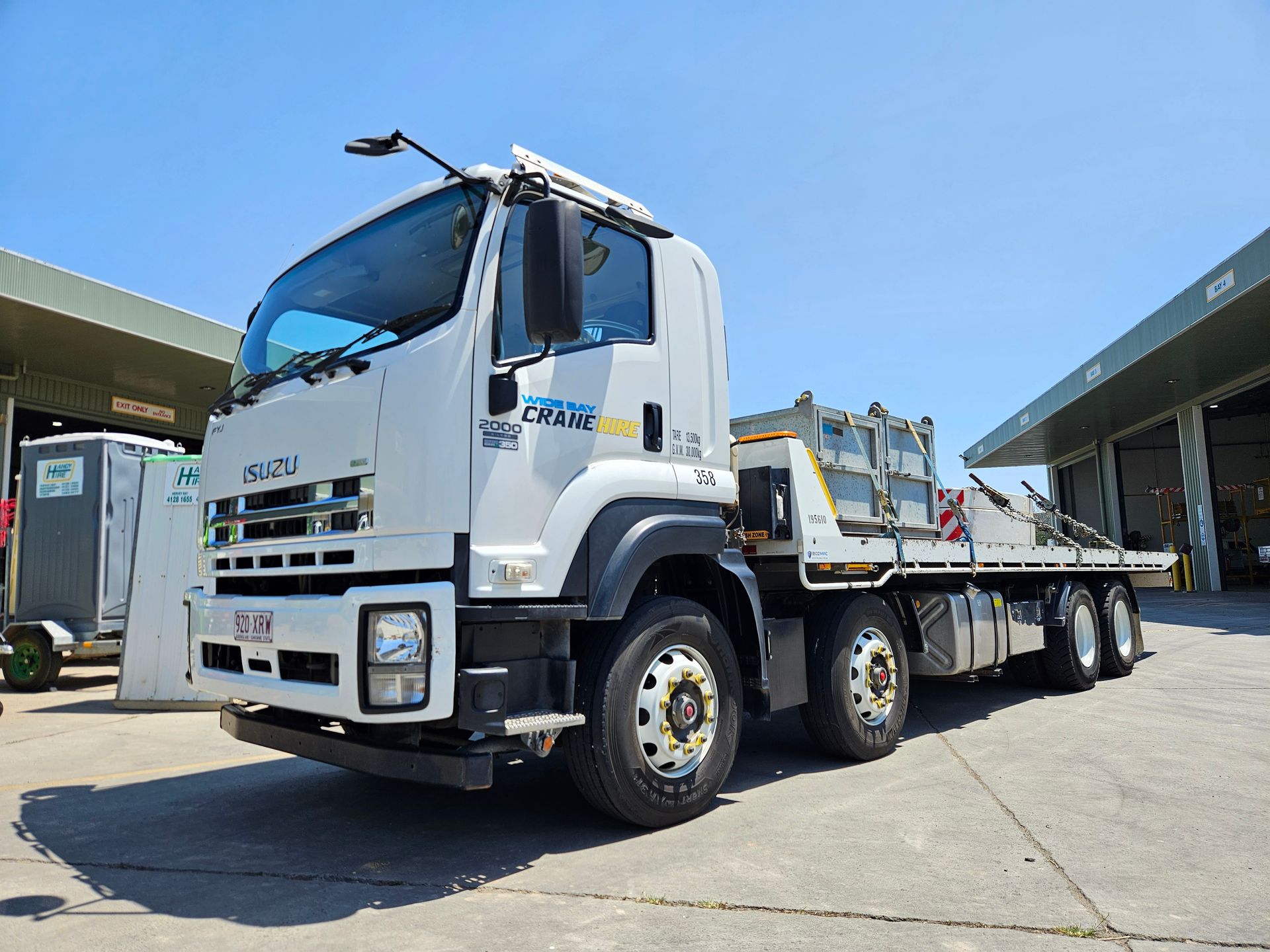

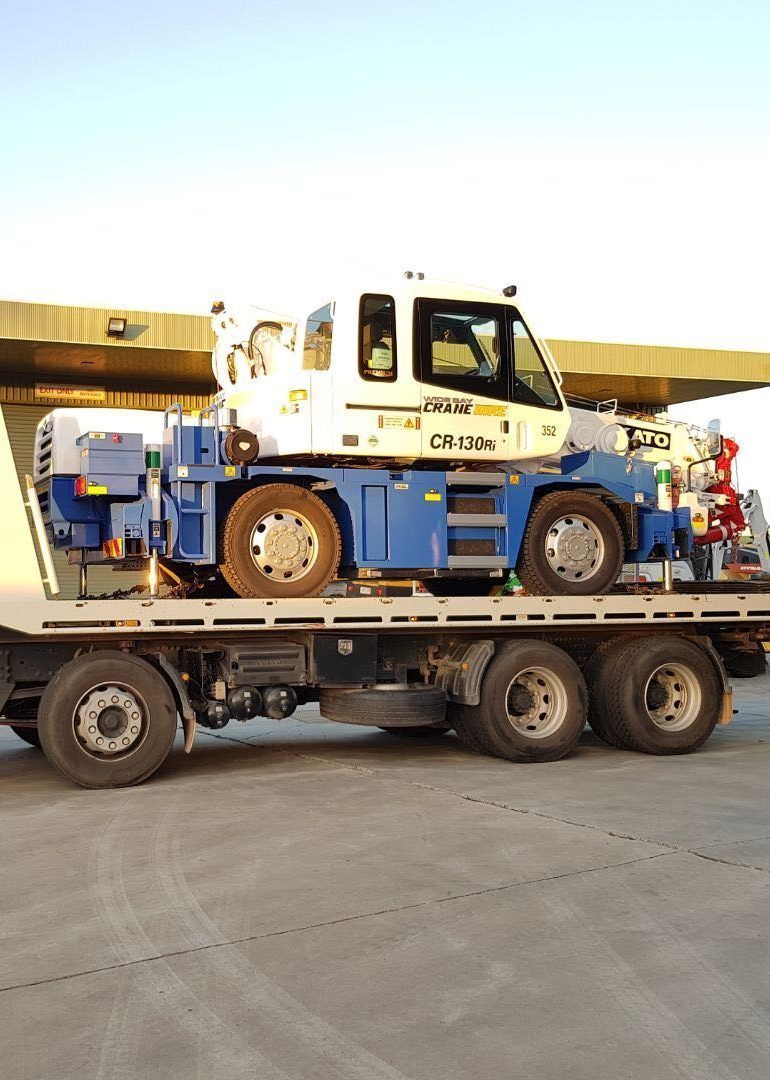

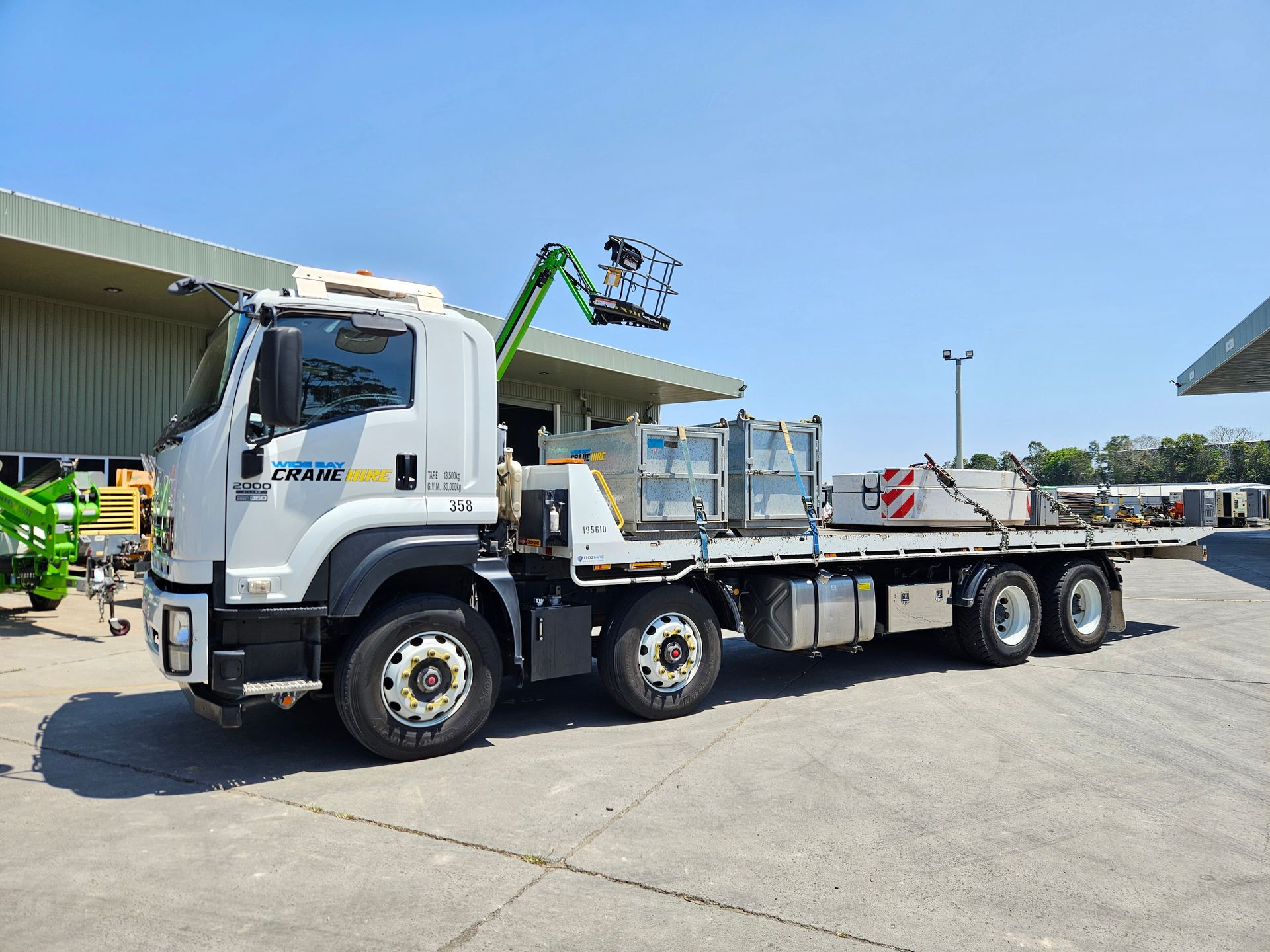

Tilt Trays
At Wide Bay Crane Hire we have tilt trays available for transportation of equipment.

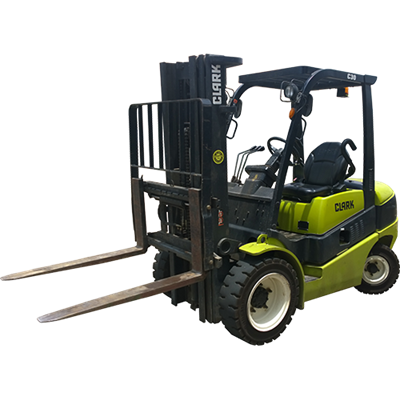

Forklifts
Engine & Fuel: Engine 43kW 3.3L 4 cyl.
Fuel Type: Diesel
Performance: Rated Load Capacity (kg) 3,000
Tipping Load (kg) 2,018
Service Weight (kg) 4,189
Travel Speed (km/h) 20
Dimensions: Length (mm) 3,738
Width (mm) 1,237
Height upright lowered(mm) 2,180
Lift Height (mm) 3,300
Turning Radius (mm) 2,405
Wheel Base (mm) 1,700

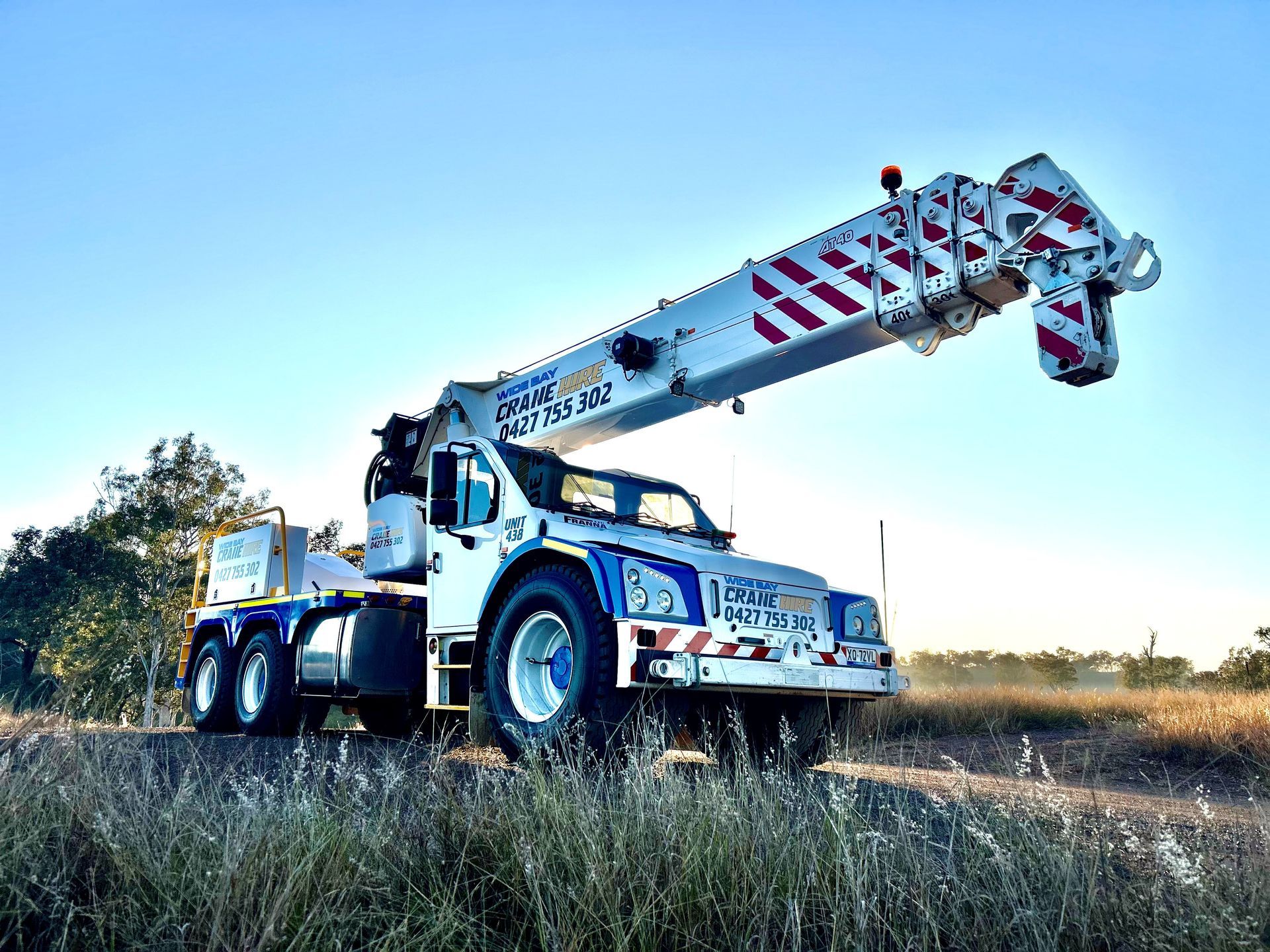

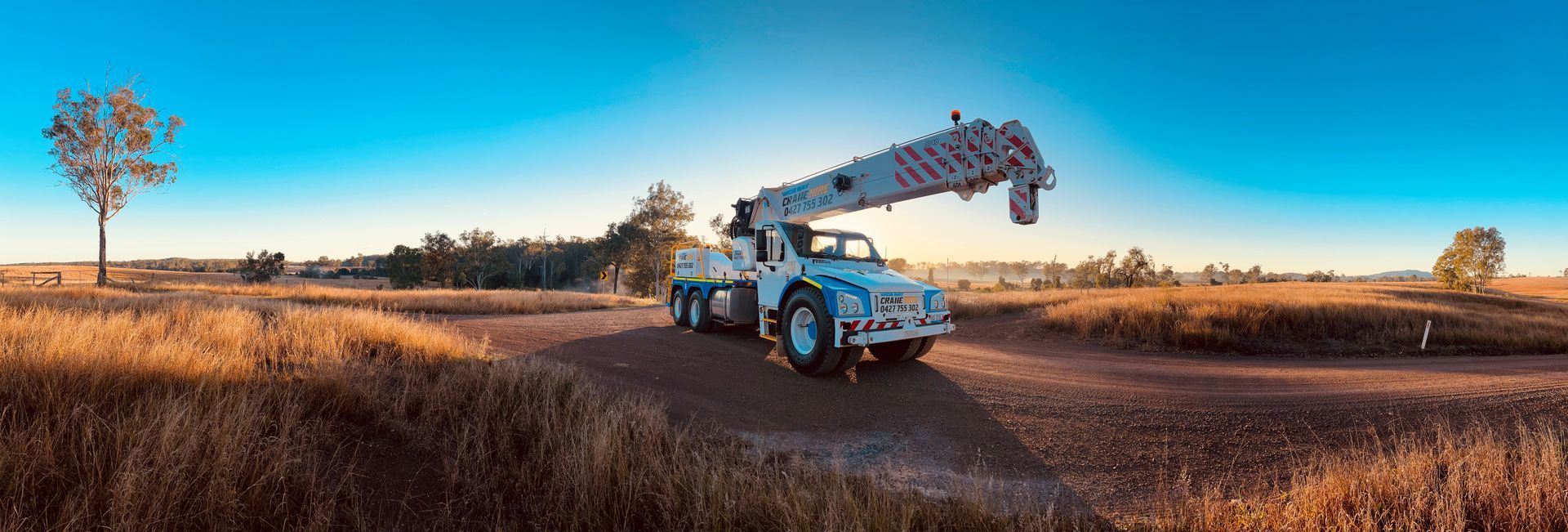

40T Franna
13T City Crane

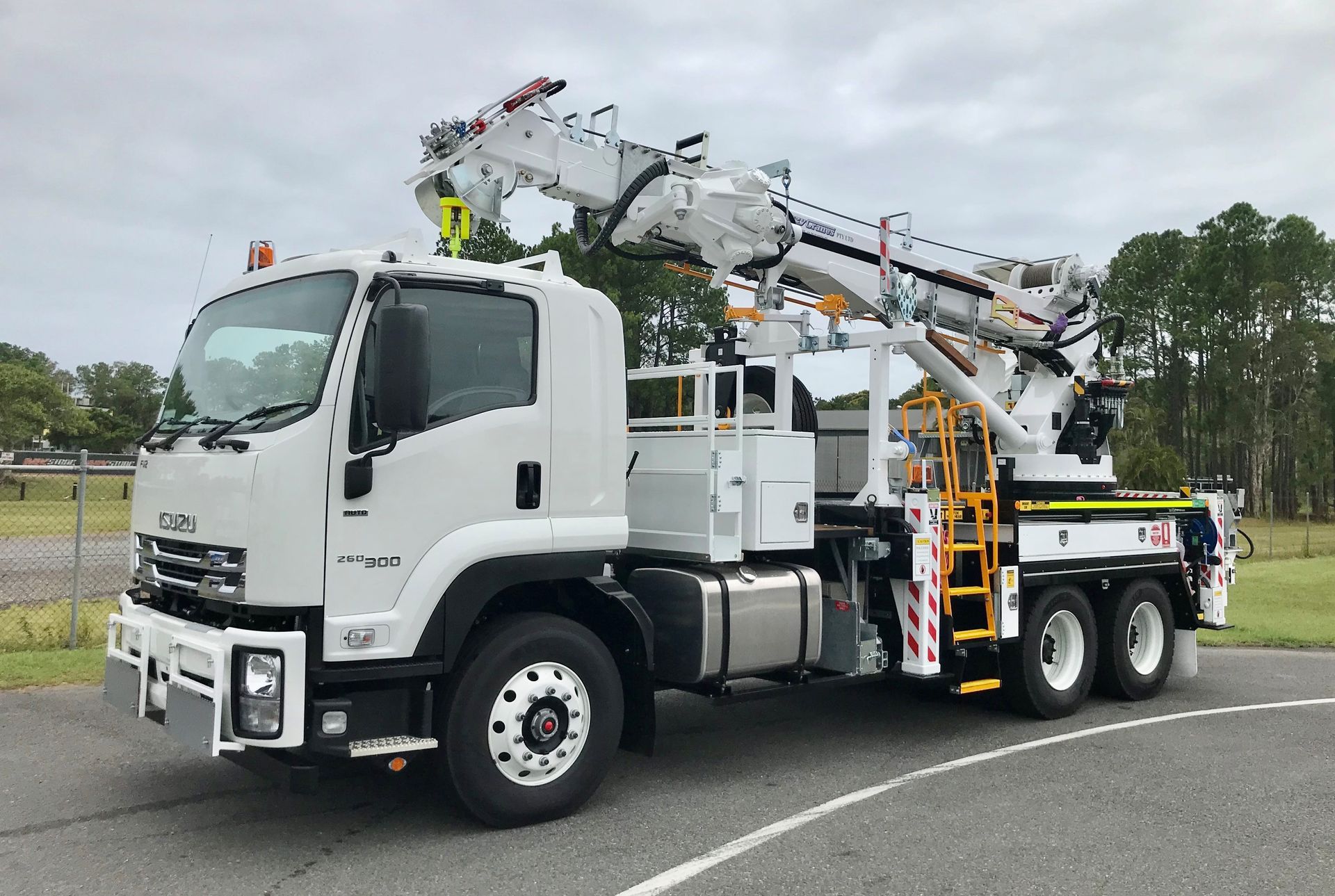

Ozzy Borers
Learn more about our current crane fleet by contacting our team
